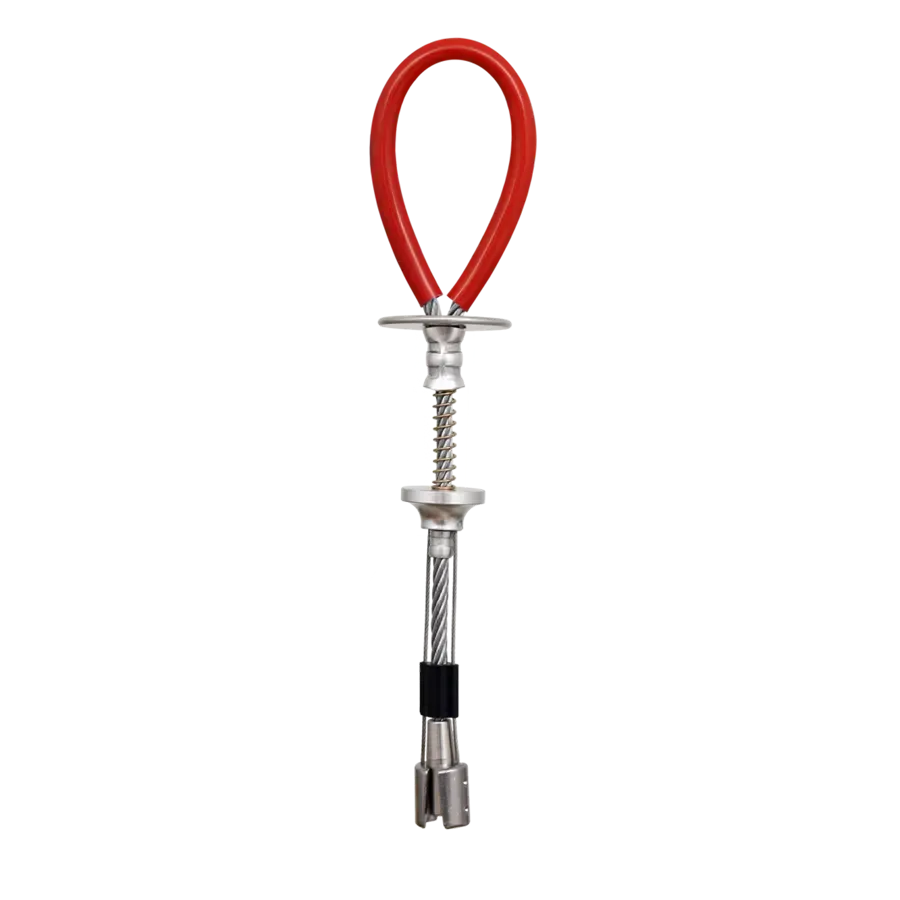

Removable Concrete Anchor
Part Number: AFA930301
Description
MATERIAL:
Clamping Jaws- Stainless Steel
Anchor Loop- Polyurethane
MINIMUM BREAKING STRENGTH:
15 kN
CONFORMS TO:
EN 795:2012 Type B & AS/NZS 5532:2013
WEIGHT:
150.0 gm ± 10 gm
AFA930301-Removable Concrete Anchor
FEATURES:
- KStrong introduces an anchorage point which is extremely easy
to install using a single hand. - Designed in a way that it can be removed from the structure, without damaging the structure or anchor, thus allowing reuse.
- Can be installed through a pre-defined hole of the diameter of 18-19mm through a drilling depth of 110mm.
- The flanges are pulled in when the eye of the anchor is pulled allowing the anchor to pass through the hole. When the eye is released, these flanges fan out along the outer part of the concrete wall and hold the anchor in its place.
